A-88F4C — Mechanical Curb @ Main Roof, Typ.

Architectural · A-88F4C

Mechanical Curb @ Main Roof, Typ.

Scale: 3" = 1'-0"
Units: imperial
Sheet: A7.34
Discipline: Architectural

Materials

Membrane / Roofing Stainless Steel Steel

Elements

Anchors / Embeds Connections / Plates Insulation Parapets Roof / Floor Openings Roofs Site / Paving Waterproofing / Flashing

Connections

Bolted Connection

Text on the drawing

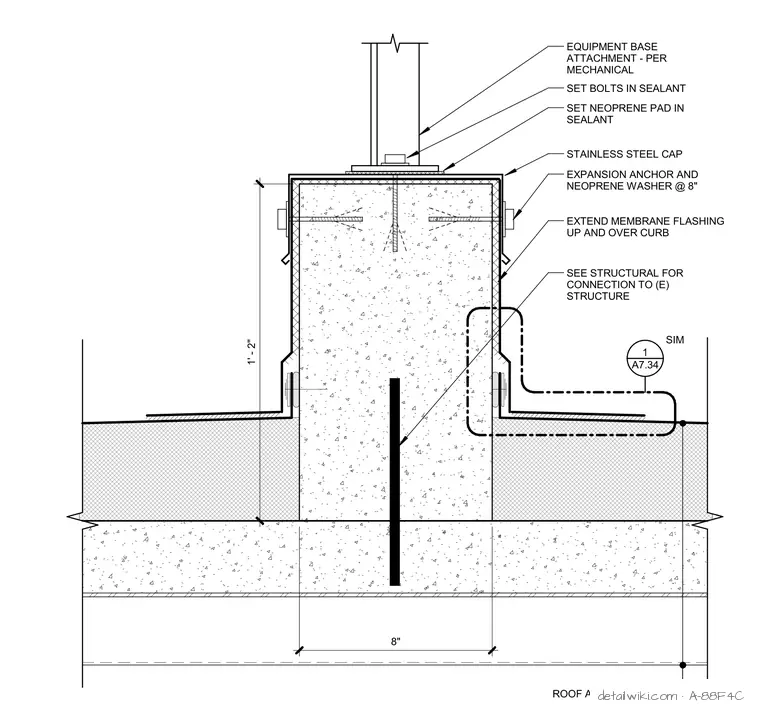

1' - 2" 8" SET BOLTS IN SEALANT EXPANSION ANCHOR AND NEOPRENE WASHER @ 8" STAINLESS STEEL CAP SET NEOPRENE PAD IN SEALANT SEE STRUCTURAL FOR CONNECTION TO (E) STRUCTURE EQUIPMENT BASE ATTACHMENT - PER MECHANICAL A7.34 1 SIM ROOF ASSEMBLY EXTEND MEMBRANE FLASHING UP AND OVER CURB
