Pony Wall Section with Quartz Cap and Wood Panels

Materials

Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Floors / Slabs Connections / Plates

Connections

HSS Connection

About this detail

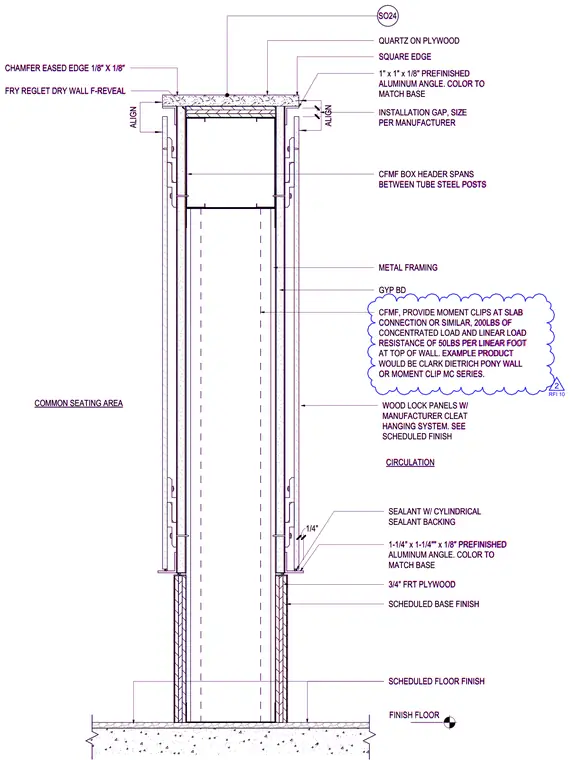

A pony wall assembly is built over a finished floor with structural tube steel posts and cold-formed metal framing. The top of the wall features a quartz surface on plywood with a square edge, supported by a cold-formed metal framing box header spanning between tube steel posts. Moment clips are provided at the connection to resist a concentrated load of two hundred pounds and a linear load of fifty pounds per linear foot. The wall faces are finished with wood lock panels mounted using a manufacturer cleat hanging system over fire-retardant plywood and gypsum board. The base of the assembly includes a prefinished aluminum angle trim, sealant with cylindrical backer rod, and scheduled base and floor finishes.
