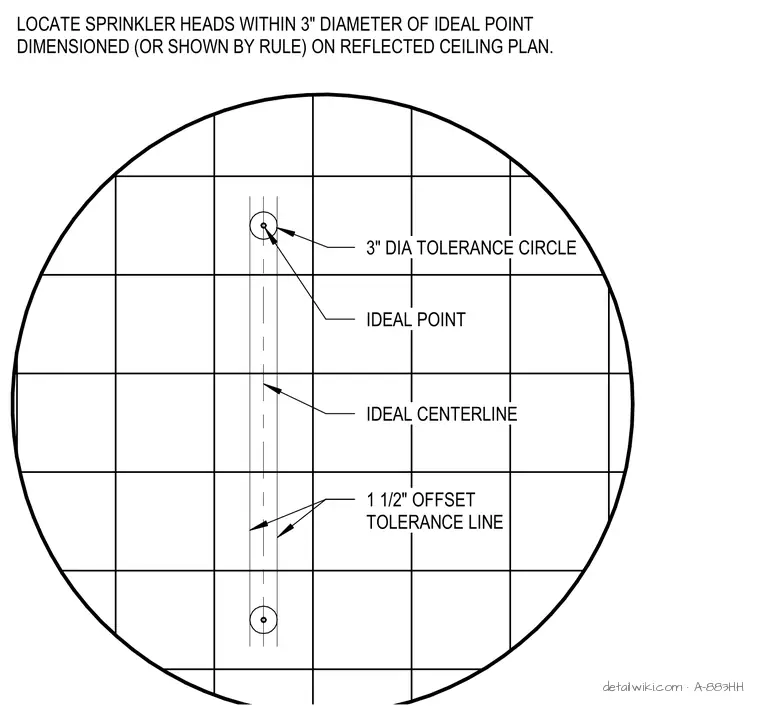

Sprinkler heads must be located within a three-inch diameter tolerance circle centered on the ideal point dimensioned on the reflected ceiling plan. For linear alignment, the sprinkler head must fall within a one-and-one-half-inch offset tolerance line relative to the ideal centerline. This rule ensures consistent head placement within the ceiling grid system.
Text on the drawing
LOCATE SPRINKLER HEADS WITHIN 3" DIAMETER OF IDEAL POINT DIMENSIONED (OR SHOWN BY RULE) ON REFLECTED CEILING PLAN. 3" DIA TOLERANCE CIRCLE IDEAL POINT IDEAL CENTERLINE
