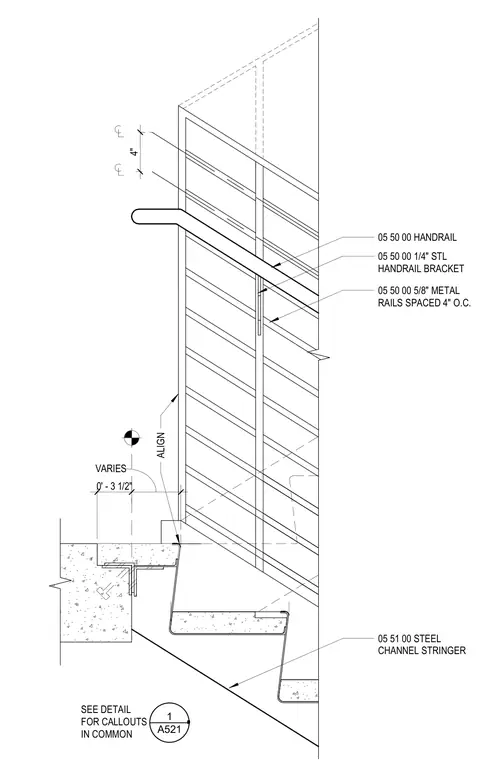

Top of a stair guardrail and handrail assembly intersecting with a concrete stair structure. The guardrail features five-eighths inch metal rails spaced four inches on center, secured alongside a handrail mounted on a one-quarter inch steel handrail bracket. The stair stringer consists of a steel channel stringer framing into the concrete stair treads and landing. Dimensions indicate alignment details and varying heights at the stair termination.
05 50 00 5/8" METAL RAILS SPACED 4" O.C. SEE DETAIL FOR CALLOUTS IN COMMON 05 50 00 HANDRAIL 05 50 00 1/4" STL HANDRAIL BRACKET 05 51 00 STEEL CHANNEL STRINGER 4" ALIGN A521 1 0' - 3 1/2" VARIES
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
