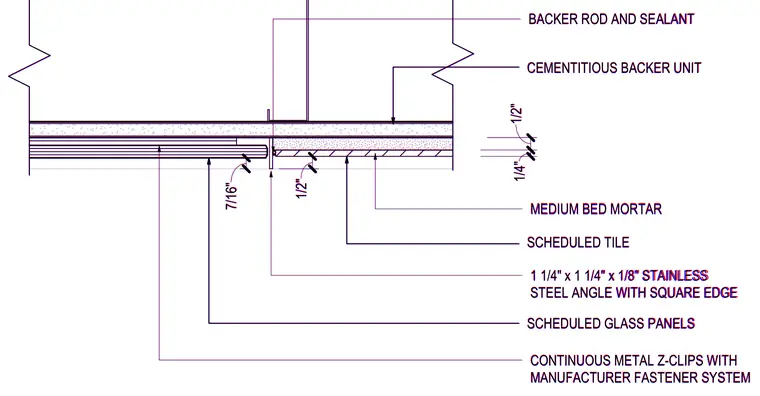

Scheduled glass panels connect to continuous metal Z-clips utilizing the manufacturer fastener system. A 1 1/4 inch by 1 1/4 inch by 1/8 inch stainless steel angle with a square edge forms the transition at the joint. The adjacent wall assembly comprises a cementitious backer unit set over medium bed mortar and scheduled tile. A backer rod and sealant fill the joint gap between the glass and the tile assembly.
CONTINUOUS METAL Z-CLIPS WITH MANUFACTURER FASTENER SYSTEM SCHEDULED TILE SCHEDULED GLASS PANELS MEDIUM BED MORTAR 1 1/4" x 1 1/4" x 1/8" STAINLESS STEEL ANGLE WITH SQUARE EDGE 1/2" 1/4" 1/2" CEMENTITIOUS BACKER UNIT BACKER ROD AND SEALANT 7/16" CONTINUOUS METAL Z-CLIPS WITH MANUFACTURER FASTENER SYSTEM SCHEDULED TILE SCHEDULED GLASS PANELS MEDIUM BED MORTAR 1 1/4" x 1 1/4" x 1/8" STAINLESS STEEL ANGLE WITH SQUARE EDGE 1/2" 1/4" 1/2" CEMENTITIOUS BACKER UNIT BACKER ROD AND SEALANT 7/16"
