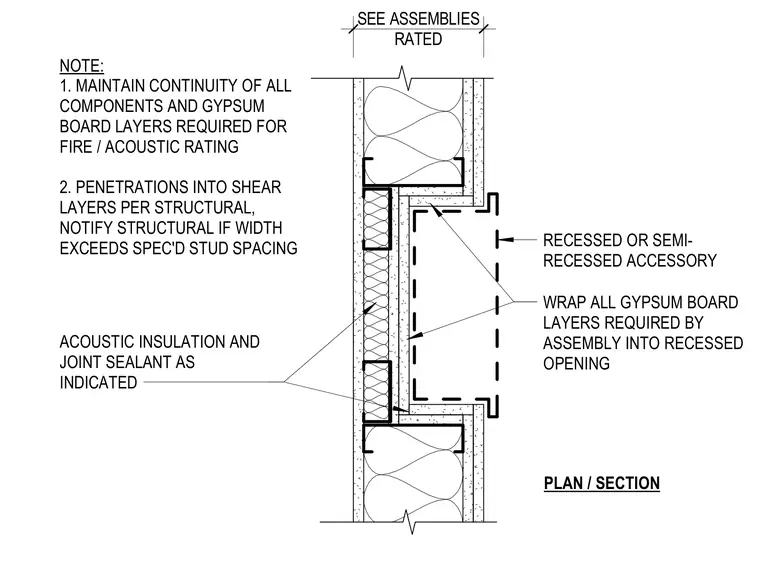

All gypsum board layers required by the rated assembly wrap continuously into the recessed opening around the accessory. Acoustic insulation and joint sealant fill the cavity and seal joints as indicated on the plan. Component continuity is maintained to preserve fire and acoustic ratings across the penetration. Penetrations into shear layers follow structural engineering requirements, with notification required if widths exceed specified stud spacings.
ACOUSTIC INSULATION AND JOINT SEALANT AS INDICATED PLAN / SECTION WRAP ALL GYPSUM BOARD LAYERS REQUIRED BY ASSEMBLY INTO RECESSED OPENING RECESSED OR SEMI- RECESSED ACCESSORY NOTE: 1. MAINTAIN CONTINUITY OF ALL COMPONENTS AND GYPSUM BOARD LAYERS REQUIRED FOR FIRE / ACOUSTIC RATING 2. PENETRATIONS INTO SHEAR LAYERS PER STRUCTURAL, NOTIFY STRUCTURAL IF WIDTH EXCEEDS SPEC'D STUD SPACING RATED SEE ASSEMBLIES
