Architectural · A-8798P

Table Games Ceiling Feature Section

Scale: 1/4" = 1'-0"
Units: imperial
Discipline: Architectural

Materials

Metal (misc.)

Elements

Ceilings

Connections

Deck Attachment

About this detail

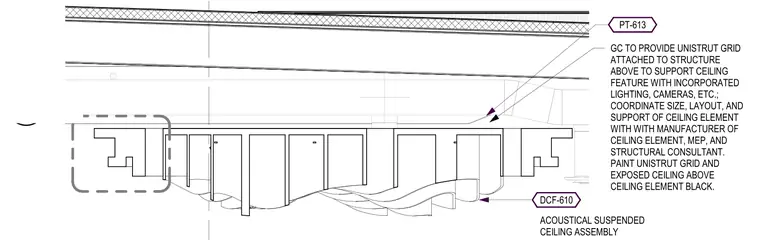

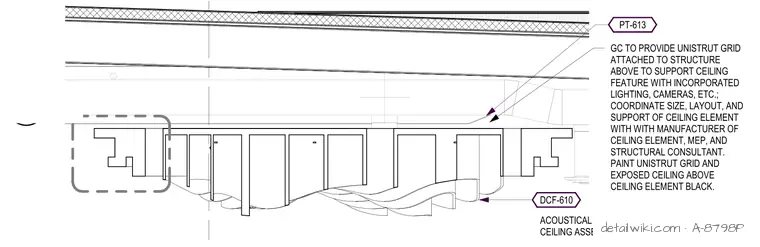

This assembly features a decorative ceiling element supported by a Unistrut grid system that is anchored to the structure above. The general contractor is responsible for providing the Unistrut grid to support the ceiling feature, which incorporates lighting and cameras. Coordination of the size, layout, and support of the ceiling element is required between the manufacturer, mechanical, electrical, and plumbing consultants, and the structural consultant. The Unistrut grid and the exposed ceiling area above the ceiling element are to be painted black.
