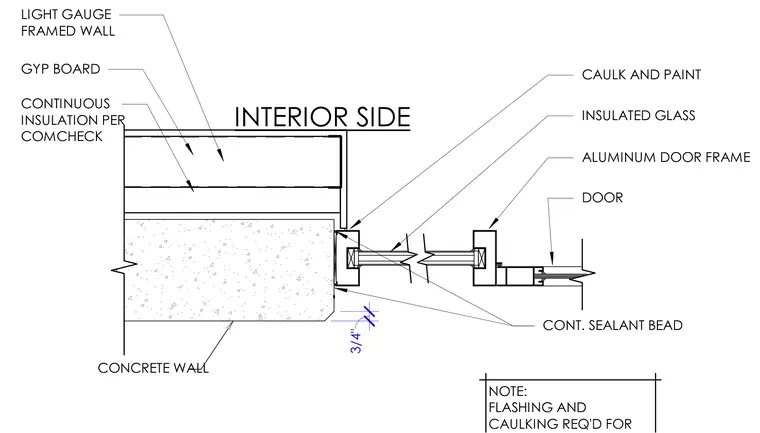

An aluminum door frame is anchored adjacent to a concrete wall with continuous sealant beads and caulked joints. The interior side features a light gauge framed wall finished with gypsum board over continuous insulation sized per Comcheck. The storefront assembly incorporates insulated glass and a door with necessary flashing and caulking required for weatherproofing.
NOTE: FLASHING AND CAULKING REQ'D FOR DOOR INSULATED GLASS INTERIOR SIDE CONCRETE WALL ALUMINUM DOOR FRAME CAULK AND PAINT LIGHT GAUGE FRAMED WALL GYP BOARD CONT. SEALANT BEAD CONTINUOUS INSULATION PER COMCHECK 3/4"
