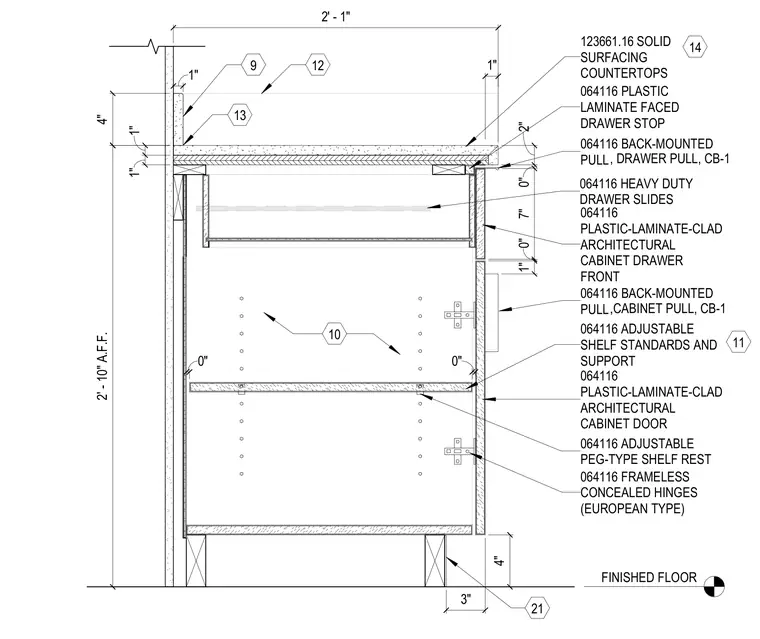

A typical base cabinet stands at a height of 2 feet 10 inches above the finished floor, featuring a solid surfacing countertop over a plastic-laminate-faced drawer stop. The upper portion includes a heavy-duty drawer slide supporting a plastic-laminate-clad architectural cabinet drawer front with a back-mounted CB-1 pull. The lower cabinet enclosure is fitted with a plastic-laminate-clad architectural cabinet door secured by frameless concealed European-type hinges and equipped with a matching back-mounted CB-1 pull. Interior storage is configured with adjustable shelf standards and supports combined with adjustable peg-type shelf rests.
064116 BACK-MOUNTED PULL ,CABINET PULL, CB-1 , DRAWER PULL, CB-1 2' - 10" A.F.F. 4" 123661.16 SOLID SURFACING COUNTERTOPS 9 064116 ADJUSTABLE SHELF STANDARDS AND SUPPORT 064116 PLASTIC-LAMINATE-CLAD ARCHITECTURAL CABINET DRAWER FRONT 1" 1" 064116 FRAMELESS CONCEALED HINGES (EUROPEAN TYPE) 064116 BACK-MOUNTED PULL 10 11 064116 PLASTIC-LAMINATE-CLAD ARCHITECTURAL CABINET DOOR FINISHED FLOOR 064116 ADJUSTABLE PEG-TYPE SHELF REST 4" 3" 0" 0" 1" 064116 HEAVY DUTY DRAWER SLIDES 12 13 14 2' - 1" 1" 2" 0" 7" 0" 1" 064116 PLASTIC LAMINATE FACED DRAWER STOP 21
