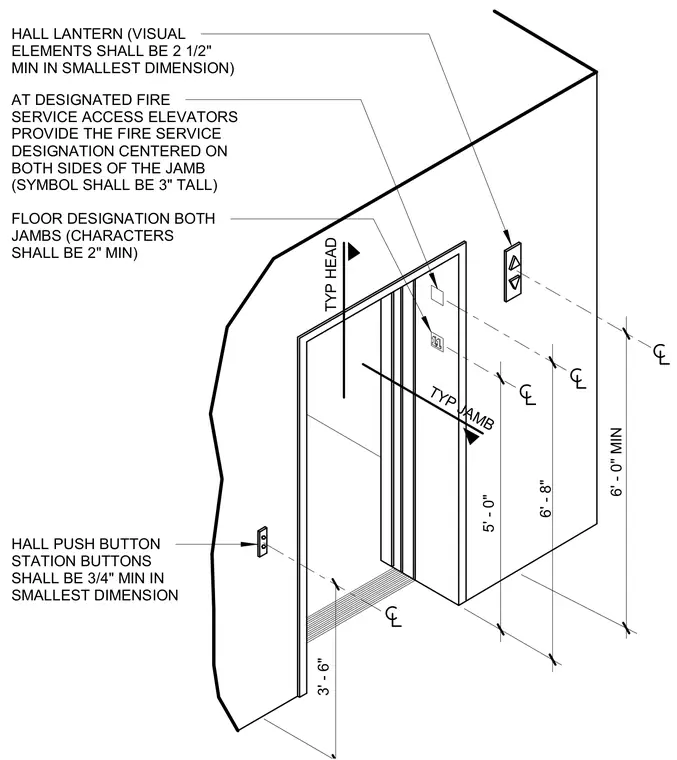

Elevator entrance assembly showing required mounting heights and accessibility dimensions relative to the finished floor. The hall push button station is positioned with buttons having a minimum dimension of three-quarters of an inch. The hall lantern visual elements measure at least two and one-half inches in the smallest dimension. Floor designations are marked on both jambs with characters at least two inches tall. Designated fire service access elevators include a three-inch tall symbol centered on both sides of the jamb at six feet eight inches above the floor.
3' - 6" 5' - 0" 6' - 0" MIN TYP HEAD TYP JAMB HALL PUSH BUTTON STATION BUTTONS SHALL BE 3/4" MIN IN SMALLEST DIMENSION FLOOR DESIGNATION BOTH JAMBS (CHARACTERS SHALL BE 2" MIN) HALL LANTERN (VISUAL ELEMENTS SHALL BE 2 1/2" MIN IN SMALLEST DIMENSION) 6' - 8" AT DESIGNATED FIRE SERVICE ACCESS ELEVATORS PROVIDE THE FIRE SERVICE DESIGNATION CENTERED ON BOTH SIDES OF THE JAMB (SYMBOL SHALL BE 3" TALL)
