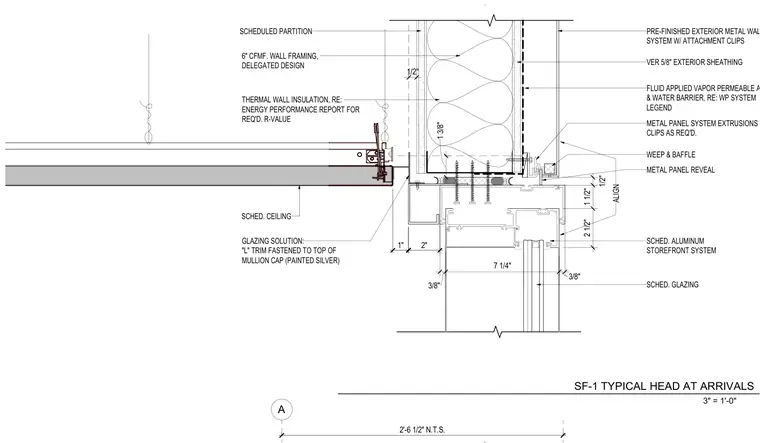

A storefront system head condition intersects a six-inch cold-formed metal framing exterior wall with exterior sheathing, a fluid-applied vapor permeable air and water barrier, and pre-finished exterior metal wall panels attached with clips. A weep and baffle system integrates with the metal panel extrusions above a seven-and-a-quarter-inch aluminum storefront system frame. A scheduled ceiling meets the storefront head using an L-trim fastened to the top of the silver-painted mullion cap at the interior. Thermal wall insulation fills the stud cavity behind the scheduled partition.
2'-6 1/2" N.T.S. A 6" CFMF. WALL FRAMING, DELEGATED DESIGN FLUID APPLIED VAPOR PERMEABLE AIR & WATER BARRIER, RE: WP SYSTEM LEGEND PRE-FINISHED EXTERIOR METAL WALL PANEL SYSTEM W/ ATTACHMENT CLIPS SCHED. GLAZING SCHED. ALUMINUM STOREFRONT SYSTEM SCHED. CEILING 3/8" 7 1/4" 3/8" 2 1/2" 1 1/2" 1/2" THERMAL WALL INSULATION, RE: ENERGY PERFORMANCE REPORT FOR REQ'D. R-VALUE SCHEDULED PARTITION WEEP & BAFFLE METAL PANEL REVEAL METAL PANEL SYSTEM EXTRUSIONS & CLIPS AS REQ'D. VER 5/8" EXTERIOR SHEATHING 1" 2" ALIGN 1/2" 1 3/8" GLAZING SOLUTION: "L" TRIM FASTENED TO TOP OF MULLION CAP (PAINTED SILVER) 3" = 1'-0" SF-1 TYPICAL HEAD AT ARRIVALS
