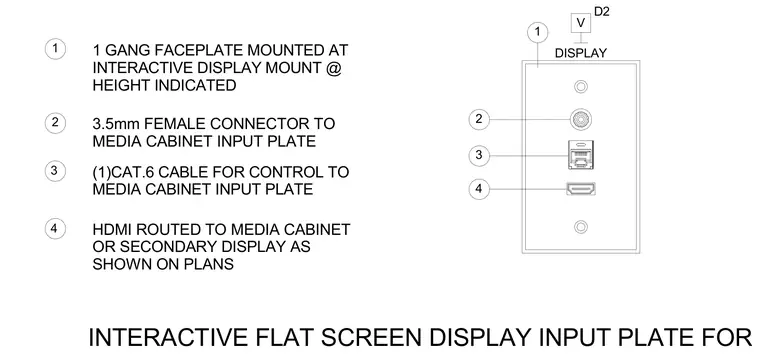

A single-gang faceplate is mounted at the interactive display mount at the indicated height. The plate includes a 3.5-millimeter female audio connector running to the media cabinet input plate. One Cat.6 cable provides control routing back to the media cabinet input plate. An HDMI cable routes signals to the media cabinet or a secondary display as shown on the plans.
1 2 3 2 1 3 4 4 1 GANG FACEPLATE MOUNTED AT INTERACTIVE DISPLAY MOUNT @ HEIGHT INDICATED (1)CAT.6 CABLE FOR CONTROL TO MEDIA CABINET INPUT PLATE 3.5mm FEMALE CONNECTOR TO MEDIA CABINET INPUT PLATE HDMI ROUTED TO MEDIA CABINET OR SECONDARY DISPLAY AS SHOWN ON PLANS INTERACTIVE FLAT SCREEN DISPLAY INPUT PLATE FOR DISPLAY V D2
