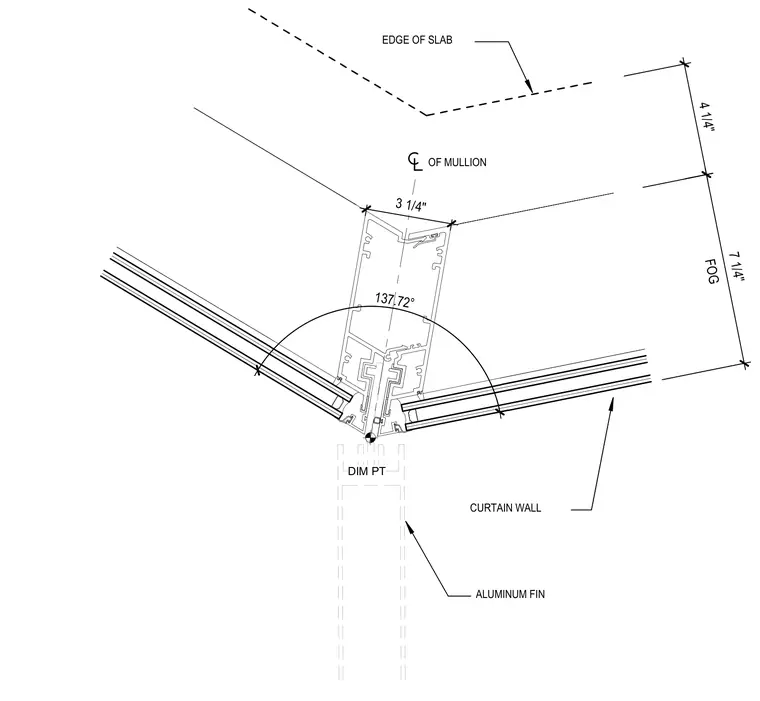

This plan detail shows an exterior curtain wall corner assembly featuring an aluminum fin projecting from the centerline of the mullion. The corner angle measures 137.72 degrees, with dimensions indicating 3 1/4 inches from the mullion centerline to the edge and 4 1/4 inches from the edge of the slab to the face of glass. An overall dimension of 7 1/4 inches spans from the slab edge to the exterior face of glass. The dimension point for the assembly aligns with the interior mullion profile.
DIM PT OF MULLION EDGE OF SLAB CURTAIN WALL F O G 7 1 / 4 " 4 1 / 4 " 1 3 7 . 7 2 ° ALUMINUM FIN 3 1 / 4 "
