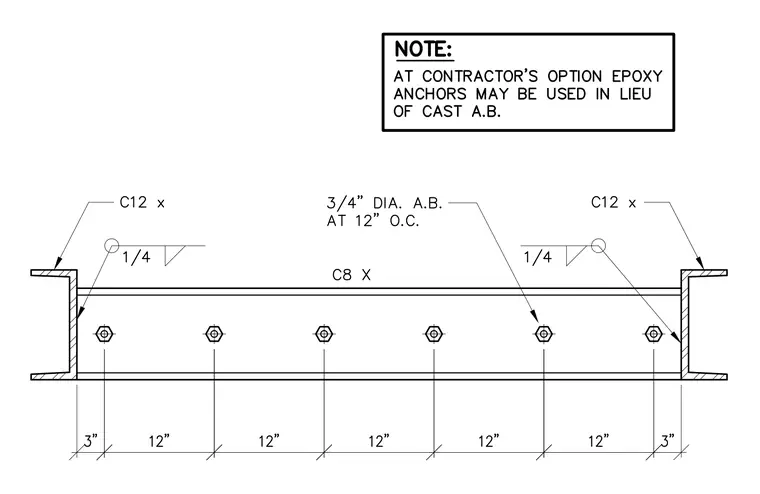

A structural channel member spanning horizontally is secured with three-quarter-inch diameter anchor bolts spaced at twelve inches on center, with dimensions showing a three-inch edge distance and repeating twelve-inch spacing. Channel members labeled C12 attach to the ends via one-quarter-inch fillet welds. Contractor options permit epoxy anchors in lieu of cast anchor bolts.
