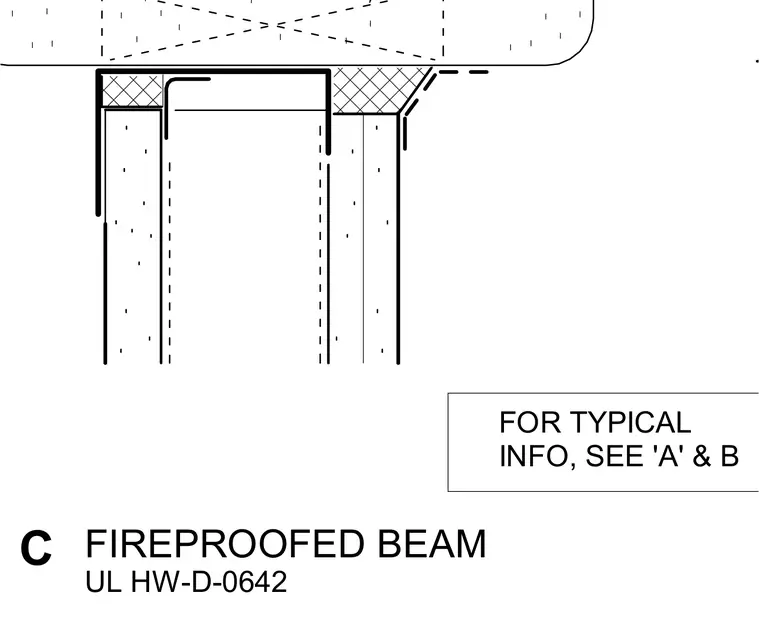

The head of the shaft wall terminates below a fireproofed structural steel beam in accordance with Underwriters Laboratories system HW-D-0642. The assembly incorporates steel framing studs and gypsum board shaft wall panels with firestopping and joint sealants at the structural interface. Reference notes direct the installer to associated drawings for typical installation information.
