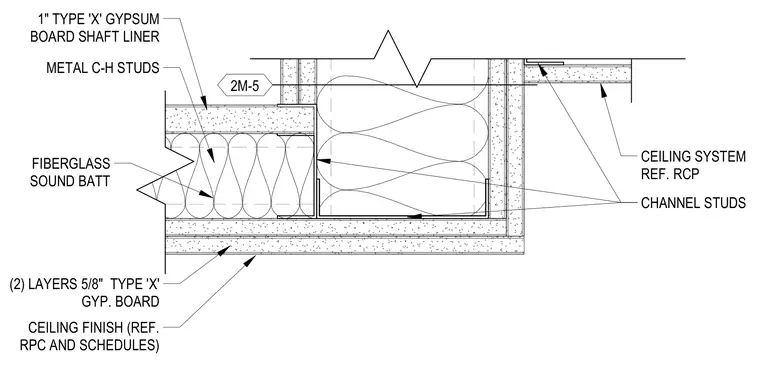

A rated bulkhead transition at a suspended ceiling utilizes metal C-H studs and channel studs. The assembly is infilled with fiberglass sound batt insulation and lined with one-inch Type X gypsum board shaft liner. Both faces of the bulkhead are finished with two layers of five-eighths-inch Type X gypsum board. The adjacent ceiling system is coordinated per the reflected ceiling plan.
FIBERGLASS SOUND BATT 1" TYPE 'X' GYPSUM BOARD SHAFT LINER METAL C-H STUDS (2) LAYERS 5/8" TYPE 'X' GYP. BOARD 2M-5 CHANNEL STUDS CEILING FINISH (REF. RPC AND SCHEDULES) CEILING SYSTEM REF. RCP
