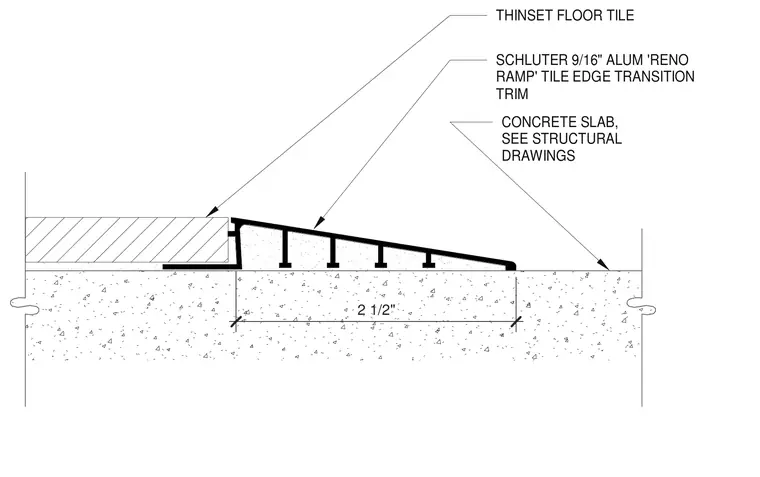

Thin-set floor tile transitions to a concrete slab via a Schluter nine-sixteenth-inch aluminum Reno Ramp tile edge transition trim. The concrete slab supports the transition assembly, with slab thickness detailed at two and one-half inches.
CONCRETE SLAB, SEE STRUCTURAL DRAWINGS SCHLUTER 9/16" ALUM 'RENO RAMP' TILE EDGE TRANSITION TRIM THINSET FLOOR TILE 2 1/2"
