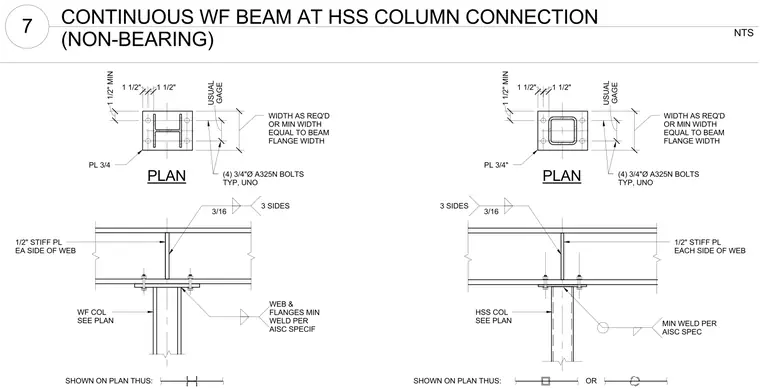

A continuous wide flange beam connects to a supporting wide flange or hollow structural section column using a three-quarter inch plate. The connection utilizes four three-quarter inch diameter A325N bolts typically, unless noted otherwise, spaced with usual gage dimensions and one and a half inch minimum edge distances. One-half inch stiffener plates are welded to each side of the web using three-sixteenth inch fillet welds on three sides. Web and flange minimum welds adhere to American Institute of Steel Construction specifications.
1/2" STIFF PL EA SIDE OF WEB WF COL SEE PLAN PLAN PL 3/4 (4) 3/4"Ø A325N BOLTS TYP, UNO WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH 3/16 3 SIDES WEB & FLANGES MIN WELD PER AISC SPECIF GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2" SHOWN ON PLAN THUS: SHOWN ON PLAN THUS: OR HSS COL SEE PLAN 1/2" STIFF PL EACH SIDE OF WEB 3/16 3 SIDES MIN WELD PER AISC SPEC PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS TYP, UNO WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2" NTS 7 CONTINUOUS WF BEAM AT HSS COLUMN CONNECTION (NON-BEARING)
