Architectural · A-85F84

Window Jamb Detail at HSS Column with Stucco

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Windows Roof / Floor Openings

Connections

HSS Connection

About this detail

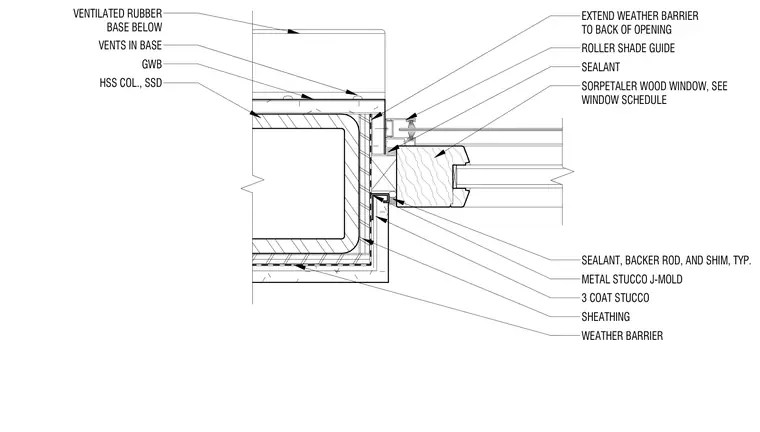

The wood window is set adjacent to a hollow structural section column wrapped in sheathing and a weather barrier that extends to the back of the opening. Sealant, backer rod, and typical shims seal the perimeter gap between the window frame and the rough opening. The exterior finish consists of a three-coat stucco system terminated with a metal stucco J-mold. The interior features gypsum wallboard over steel stud framing, detailed with a ventilated rubber base containing vents.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
