Structural · A-85EGC

Steel Framing Plan Detail with Gusset Plate and Shear Connection

About this detail

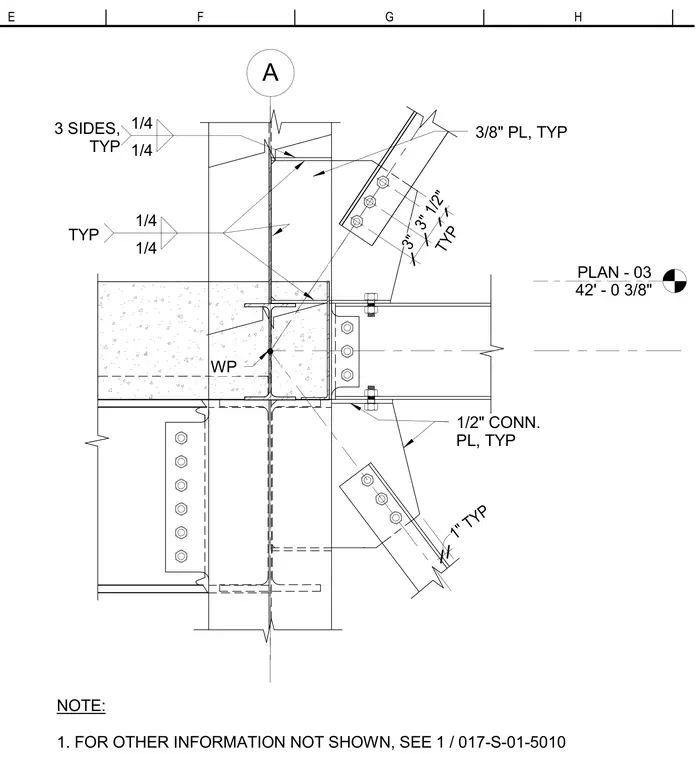

This structural plan detail shows a steel framing connection at column grid lines E through H. A wide-flange beam frames into the column flange with a bolted shear connection plate, while diagonal bracing members connect via typical three-eighths-inch and one-half-inch gusset plates welded to the column and beam flanges with one-quarter-inch fillet welds on three sides. Grid line markers and a work point locate the intersection at elevation forty-two feet, zero and three-eighths inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
