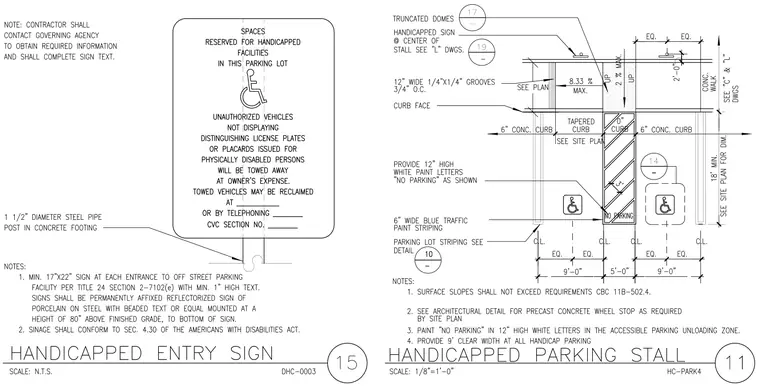

An accessible parking stall layout shows a 9-foot clear width parking stall adjacent to a 5-foot access aisle with a tapered curb, 12-inch wide 1/4-inch by 1/4-inch grooves at 3/4-inch on center, and truncated domes. White paint letters reading 'NO PARKING' are marked in the loading zone alongside 6-inch wide blue traffic paint striping. The handicapped entry sign detail features a 1 1/2-inch diameter steel pipe post embedded in a concrete footing supporting a 17-inch by 22-inch reflectorized porcelain on steel sign mounted at 80 inches above finished grade.
