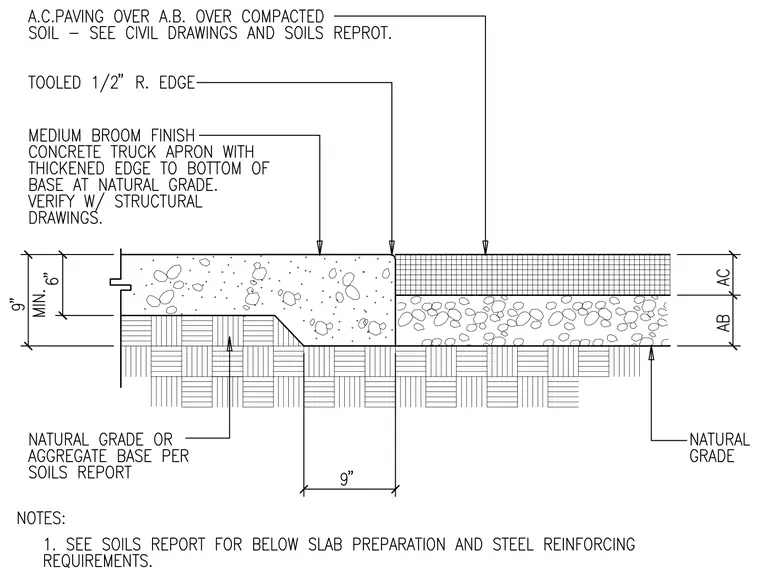

A medium broom finish concrete truck apron features a thickened edge extending to the bottom of the aggregate base at natural grade. The outer edge includes a tooled half-inch radius. The adjacent asphalt concrete paving rests over aggregate base and compacted soil. Natural grade and aggregate base depths are constructed per the soils report.
