Steel Bridge Tower Cap Plate Connection Detail

Materials

Steel

Elements

Connections / Plates

Connections

Bolted Connection

About this detail

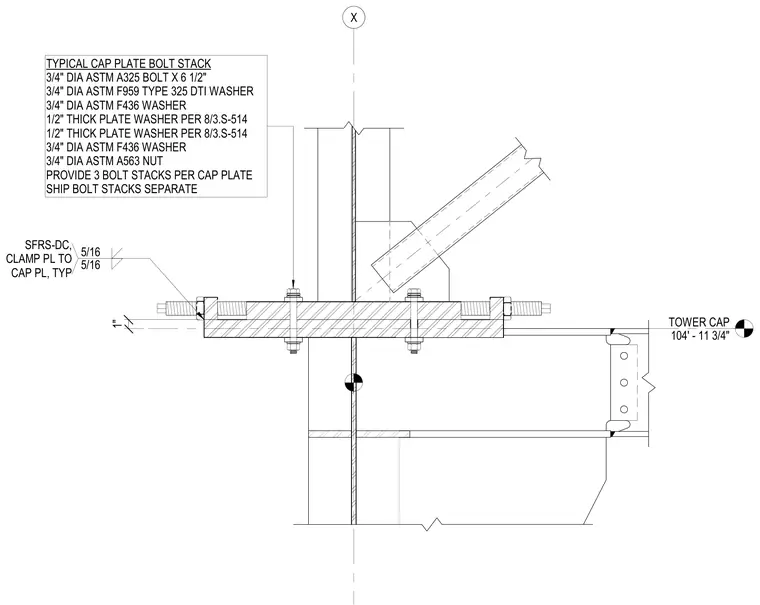

This connection assembly features a tower cap plate secured with three three-quarter-inch diameter ASTM A325 bolts at six and one-half inches long, direct tension indicator washers, ASTM F436 plate washers, half-inch thick plate washers per detail 8/3.S-514, and ASTM A563 nuts. Clamp plates are welded to the cap plate using five-sixteenth-inch fillet welds. Bolt stacks are shipped separately for field assembly.
