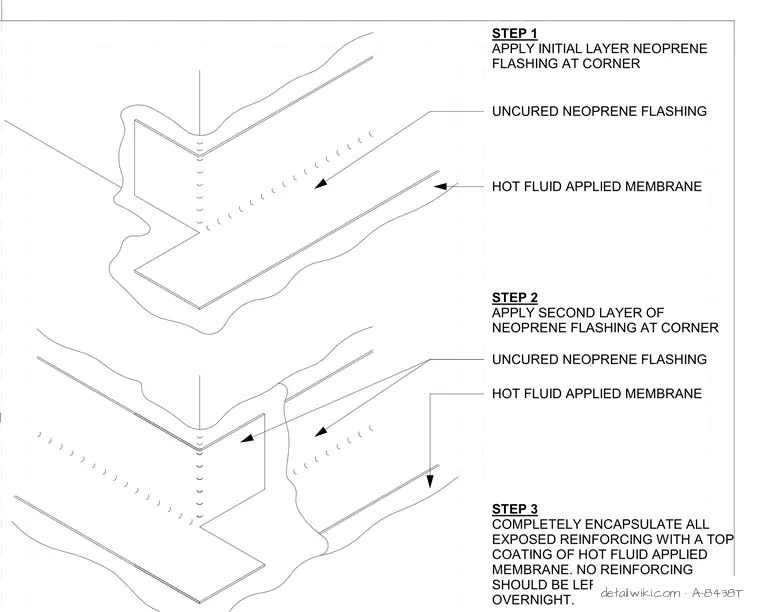

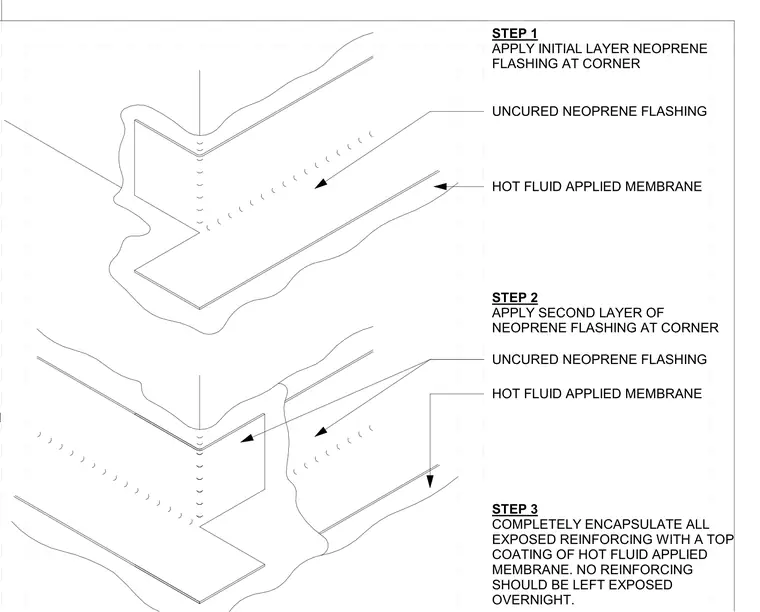

Step one applies an initial layer of uncured neoprene flashing at the outside corner over hot fluid applied membrane. Step two adds a second layer of uncured neoprene flashing over the initial layer. Step three completely encapsulates all exposed reinforcing with a top coating of hot fluid applied membrane, ensuring no reinforcing is left exposed overnight. The assembly includes stainless steel top and bottom components with continuous hot fluid applied membrane waterproofing.
UNCURED NEOPRENE FLASHING STEP 1 APPLY INITIAL LAYER NEOPRENE FLASHING AT CORNER STEP 2 APPLY SECOND LAYER OF NEOPRENE FLASHING AT CORNER STEP 3 COMPLETELY ENCAPSULATE ALL EXPOSED REINFORCING WITH A TOP COATING OF HOT FLUID APPLIED MEMBRANE. NO REINFORCING SHOULD BE LEFT EXPOSED OVERNIGHT. HOT FLUID APPLIED MEMBRANE UNCURED NEOPRENE FLASHING HOT FLUID APPLIED MEMBRANE STAINLESS STEEL TOP AND BOTTOM
