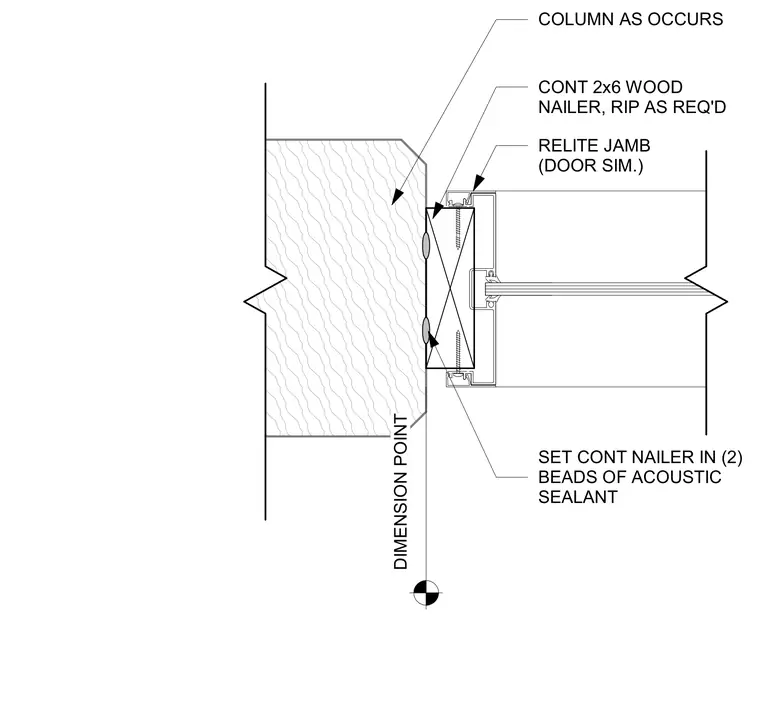

A continuous two-by-six wood nailer is ripped as required and secured against the face of the column. The nailer is set in two beads of acoustic sealant to maintain sound isolation. The relite jamb, similar to a door frame profile, attaches to the wood nailer.
RELITE JAMB (DOOR SIM.) COLUMN AS OCCURS CONT 2x6 WOOD NAILER, RIP AS REQ'D DIMENSION POINT SET CONT NAILER IN (2) BEADS OF ACOUSTIC SEALANT
