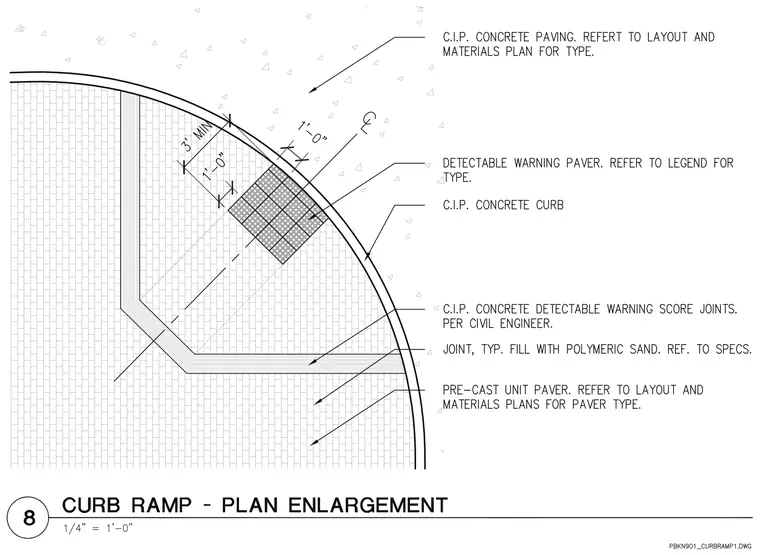

This curb ramp plan enlargement details the layout of accessible paving transitions at a corner radius. The assembly consists of a cast-in-place concrete curb and surrounding cast-in-place concrete paving sized per layout and materials plans, transitioning to pre-cast unit pavers with joints typically filled with polymeric sand. A detectable warning paver is positioned along the curb line with specific dimensional offsets including a one-foot width and a three-foot minimum depth. Cast-in-place concrete detectable warning score joints are located per the civil engineer.
