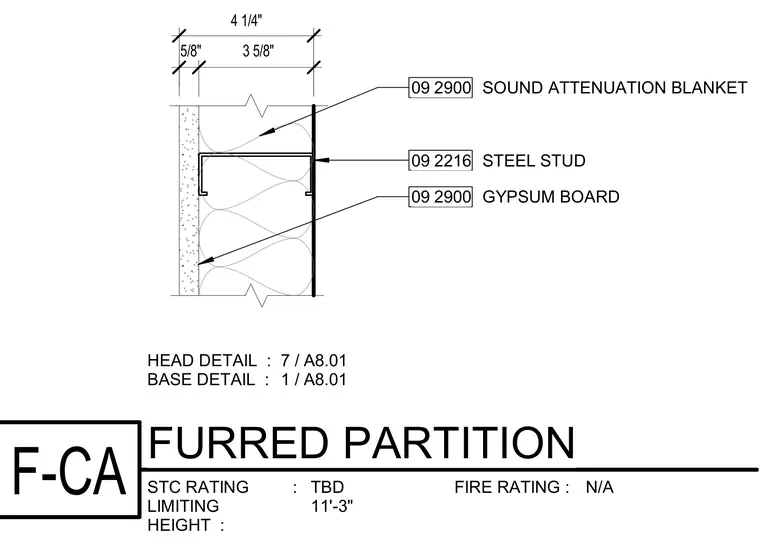

This furred partition assembly consists of three-and-five-eighths-inch steel studs spaced with a five-eighths-inch gypsum board finish. A sound attenuation blanket fills the stud cavity for acoustic performance. The total nominal thickness of the assembly measures four-and-a-quarter inches.
5/8" 3 5/8" STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : F-CA FURRED PARTITION TBD N/A 11'-3" 7 / A8.01 1 / A8.01 4 1/4" 09 2900 SOUND ATTENUATION BLANKET 09 2900 GYPSUM BOARD 09 2216 STEEL STUD
