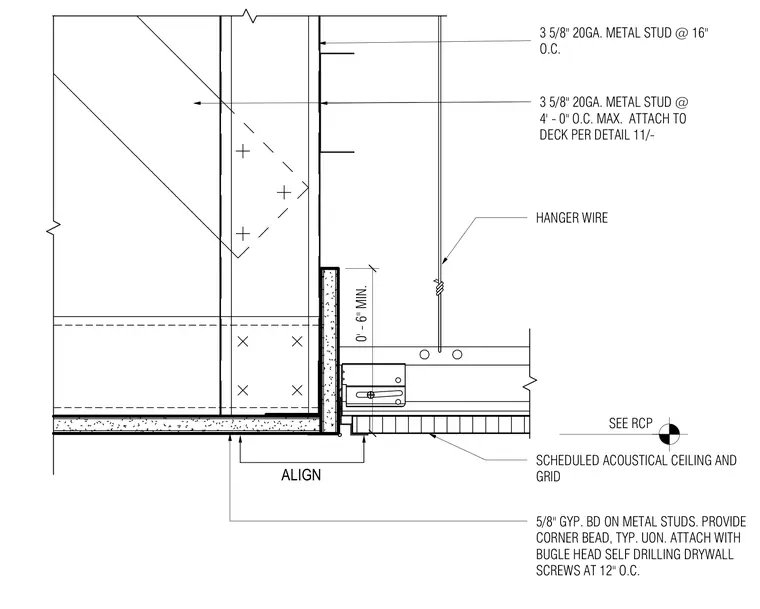

A gypsum board soffit is framed with 3-5/8 inch 20-gauge metal studs spaced at 16 inches on center, backed by additional 3-5/8 inch 20-gauge studs spaced at a maximum of 4 feet on center attached to the deck. Five-eighths inch gypsum board is fastened to the metal studs with bugle head self-drilling drywall screws spaced at 12 inches on center and finished with a corner bead. The adjacent scheduled acoustical ceiling and grid is suspended by hanger wire with a minimum clearance of six inches.
ALIGN SEE RCP 5/8" GYP. BD ON METAL STUDS. PROVIDE CORNER BEAD, TYP. UON. ATTACH WITH BUGLE HEAD SELF DRILLING DRYWALL SCREWS AT 12" O.C. SCHEDULED ACOUSTICAL CEILING AND GRID 0' - 6" MIN. HANGER WIRE 3 5/8" 20GA. METAL STUD @ 16" O.C. 3 5/8" 20GA. METAL STUD @ 4' - 0" O.C. MAX. ATTACH TO DECK PER DETAIL 11/-
