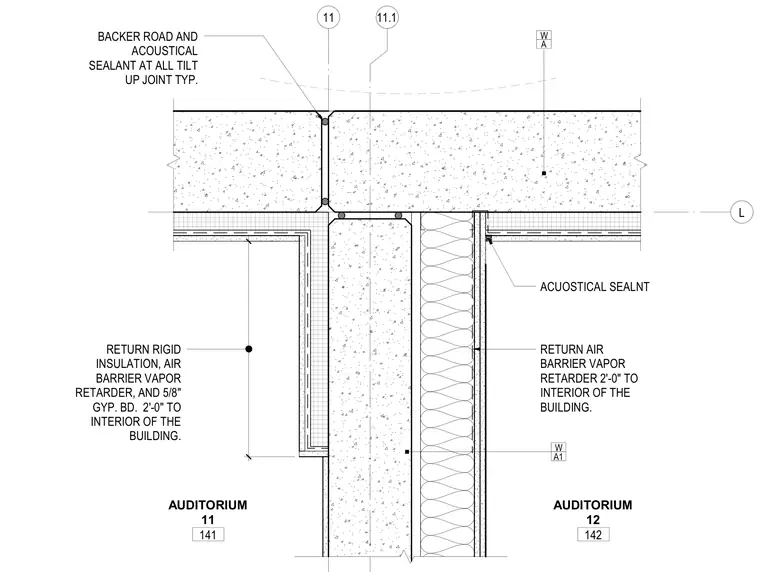

The assembly details a demising wall framing intersection against a tilt-up concrete panel joint. Backer rod and acoustical sealant are installed at all tilt-up panel joints. Rigid insulation, an air barrier vapor retarder, and five-eighths inch gypsum board return two feet into the interior of the building.
11.1 L 11 - BACKER ROAD AND ACOUSTICAL SEALANT AT ALL TILT UP JOINT TYP. A W A1 W RETURN RIGID INSULATION, AIR BARRIER VAPOR RETARDER, AND 5/8" GYP. BD. 2'-0" TO INTERIOR OF THE BUILDING. RETURN AIR BARRIER VAPOR RETARDER 2'-0" TO INTERIOR OF THE BUILDING. ACUOSTICAL SEALNT AUDITORIUM 12 142 AUDITORIUM 11 141
