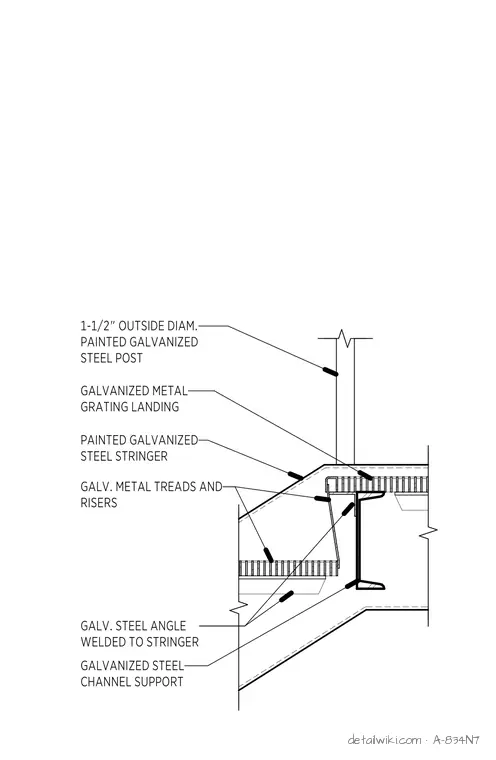

Galvanized metal treads and risers are supported by a galvanized steel angle welded to a painted galvanized steel stringer. A galvanized steel channel support sits beneath the stringer assembly. The landing consists of galvanized metal grating framed by a painted galvanized steel stringer. A one-and-one-half-inch outside diameter painted galvanized steel post is anchored at the landing level.
