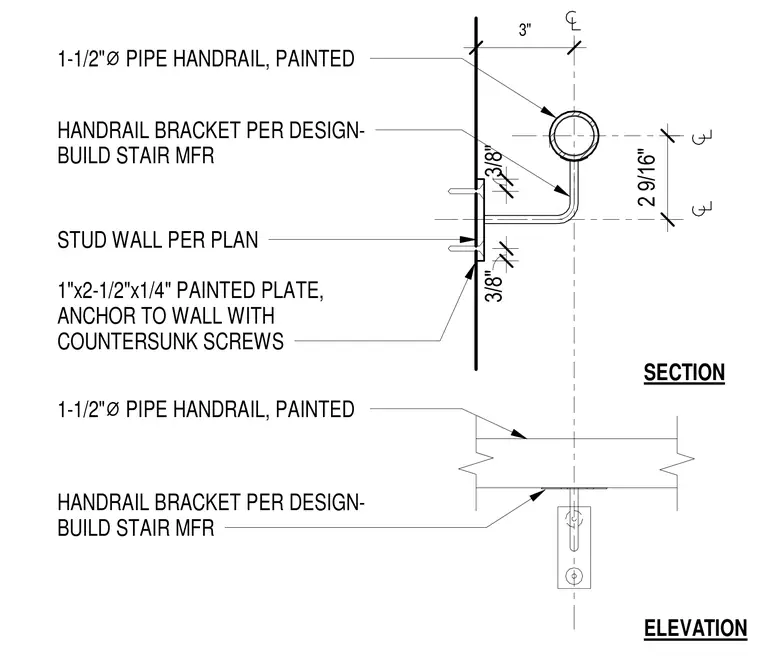

A one-and-a-half-inch diameter painted pipe handrail mounts to a stud wall using a design-build stair manufacturer handrail bracket. The bracket attaches to a one-inch by two-and-a-half-inch by quarter-inch painted plate, which is anchored to the wall using countersunk screws. The assembly maintains specified offsets from the wall surface to the centerline of the handrail.
3" 2 9/16" 1-1/2" ⌀ PIPE HANDRAIL, PAINTED HANDRAIL BRACKET PER DESIGN- BUILD STAIR MFR 3/8" 3/8" 1"x2-1/2"x1/4" PAINTED PLATE, ANCHOR TO WALL WITH COUNTERSUNK SCREWS STUD WALL PER PLAN SECTION ELEVATION 1-1/2" ⌀ PIPE HANDRAIL, PAINTED HANDRAIL BRACKET PER DESIGN- BUILD STAIR MFR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
