Architectural · A-82X9W

Backdraft Damper Jamb at Intermediate Support

Materials

Concrete Reinforced Concrete Steel Metal (misc.)

Elements

Columns Beams Walls Floors / Slabs Decks Insulation Site / Paving Anchors / Embeds Connections / Plates Reinforcing

Connections

HSS Connection

About this detail

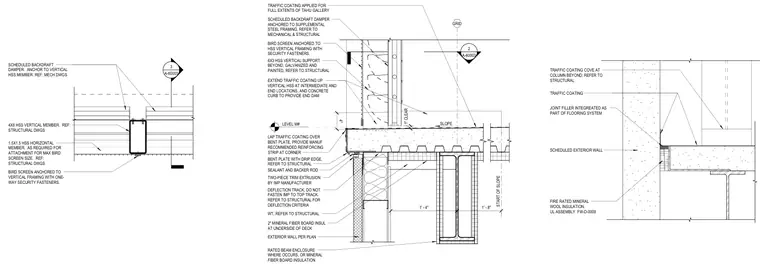

A scheduled backdraft damper is anchored to a vertical 4x8 hollow structural section member per mechanical drawings. A bird screen is secured to the vertical framing using one-way security fasteners across a 1.5x1.5 horizontal hollow structural section member. The assembly integrates with a 6x3 galvanized and painted vertical hollow structural support beyond, traffic coating applied with a bent plate and drip edge, sealant and backer rod, and a two-piece trim extrusion by the insulated metal panel manufacturer. Mineral fiber board insulation is placed at the underside of the deck, and traffic coating is extended up the vertical hollow structural section and concrete curb to provide an end dam.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
