A hollow metal frame is installed at the half-height door jamb and provided with a welded cap at the top. The surrounding wall is framed with six-inch steel studs spaced at twelve inches on center with sheathing sized per plan. A flush wood gate with a continuous hinge and a finger guard attaches to the frame assembly. Three vented grommets are located along the top with a color to match the adjacent finish.

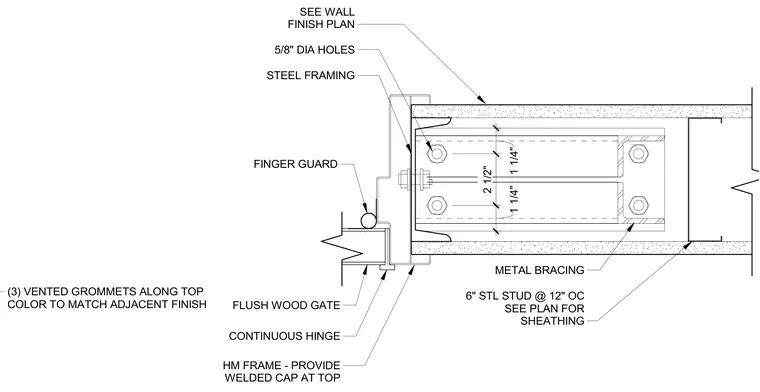

(3) VENTED GROMMETS ALONG TOP COLOR TO MATCH ADJACENT FINISH 1 1/4" 2 1/2" 1 1/4" 5/8" DIA HOLES STEEL FRAMING HM FRAME - PROVIDE WELDED CAP AT TOP SEE WALL FINISH PLAN METAL BRACING 6" STL STUD @ 12" OC SEE PLAN FOR SHEATHING FLUSH WOOD GATE CONTINUOUS HINGE FINGER GUARD
