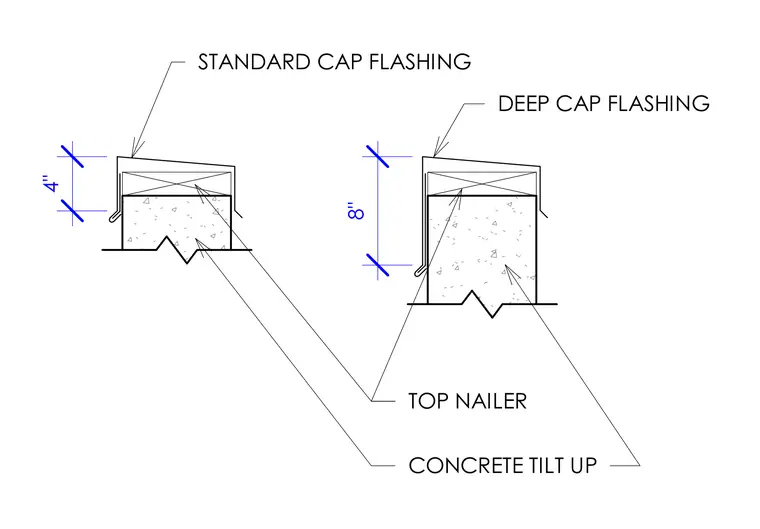

Standard and deep metal cap flashing profiles are mounted over a wood top nailer secured to the top of a concrete tilt-up wall. The standard cap flashing profile provides a four-inch vertical coverage dimension. The deep cap flashing profile extends the vertical coverage to eight inches for greater weather protection.
