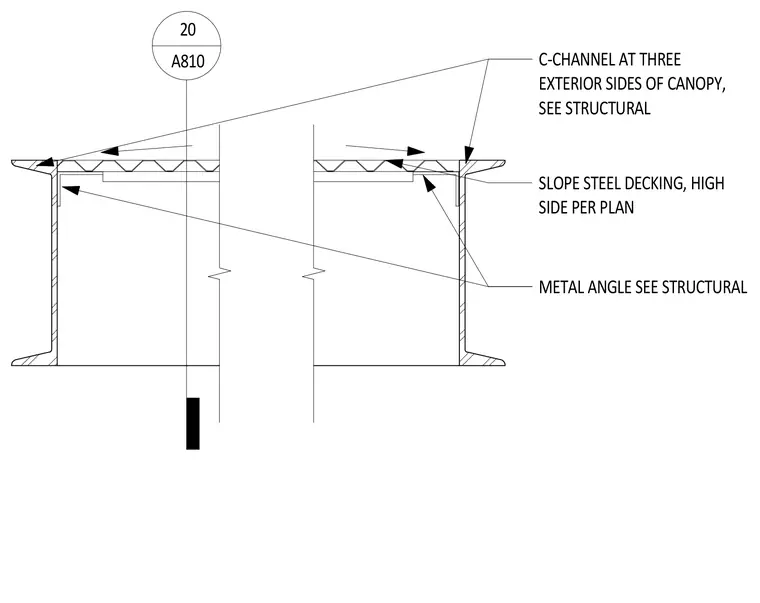

Steel decking is sloped with the high side positioned per plan and bearing on support framing. Metal angles sized per structural drawings provide intermediate support beneath the deck. C-channels run along the three exterior sides of the canopy to retain the deck edges.
SLOPE STEEL DECKING, HIGH SIDE PER PLAN C-CHANNEL AT THREE EXTERIOR SIDES OF CANOPY, SEE STRUCTURAL METAL ANGLE SEE STRUCTURAL 20 A810
