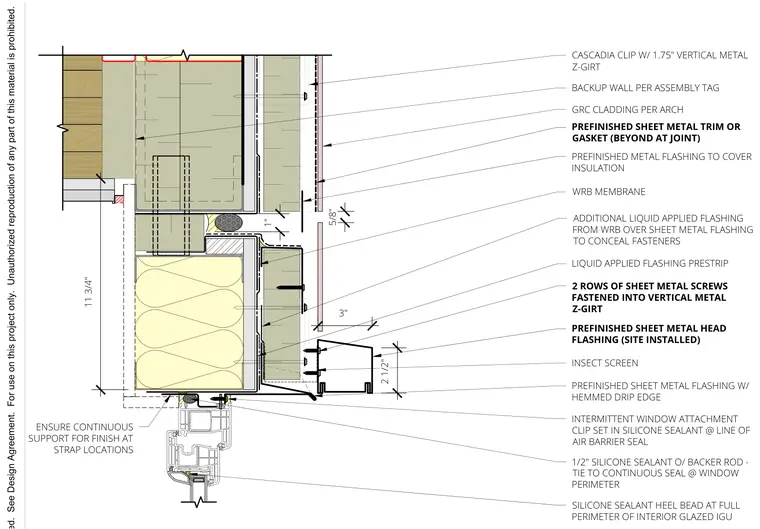

This window head detail shows the junction between an exterior window unit and a backup wall clad in glass-fiber reinforced concrete panels. The assembly incorporates a prefinished sheet metal head flashing with a hemmed drip edge, secured with two rows of sheet metal fasteners tied into vertical metal Z-girts and Cascadia clips. A liquid-applied flashing prestrip and additional liquid-applied membrane over the sheet metal flashing conceal fasteners and integrate with the water-resistive barrier. The window is secured with intermittent attachment clips set in silicone sealant along the air barrier line. A half-inch silicone sealant bead over a backer rod ties into the continuous perimeter seal, while a silicone heel bead runs along the full perimeter of the interior glazed insulated glass unit. An insect screen is integrated into the metal flashing assembly, and continuous support is provided for the finish at strap locations.
8001 8095 7134 8727 Ix=2.20 8727 Ix=2.20 1" LIQUID APPLIED FLASHING PRESTRIP PREFINISHED SHEET METAL HEAD FLASHING (SITE INSTALLED) 1/2" SILICONE SEALANT O/ BACKER ROD - TIE TO CONTINUOUS SEAL @ WINDOW PERIMETER WRB MEMBRANE CASCADIA CLIP W/ 1.75" VERTICAL METAL Z-GIRT GRC CLADDING PER ARCH PREFINISHED SHEET METAL TRIM OR GASKET (BEYOND AT JOINT) BACKUP WALL PER ASSEMBLY TAG 2 ROWS OF SHEET METAL SCREWS FASTENED INTO VERTICAL METAL Z-GIRT ADDITIONAL LIQUID APPLIED FLASHING FROM WRB OVER SHEET METAL FLASHING TO CONCEAL FASTENERS PREFINISHED SHEET METAL FLASHING W/ HEMMED DRIP EDGE INSECT SCREEN SILICONE SEALANT HEEL BEAD AT FULL PERIMETER OF INTERIOR GLAZED IGU INTERMITTENT WINDOW ATTACHMENT CLIP SET IN SILICONE SEALANT @ LINE OF AIR BARRIER SEAL 5/8" PREFINISHED METAL FLASHING TO COVER INSULATION 11 3/4" 3" 2 1/2" ENSURE CONTINUOUS SUPPORT FOR FINISH AT STRAP LOCATIONS
