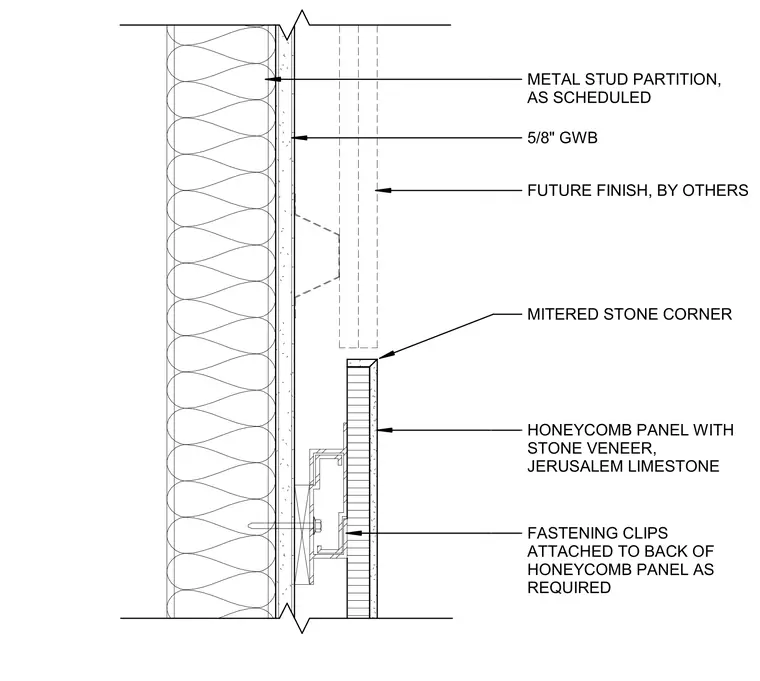

A metal stud partition scheduled per plans receives a layer of five-eighths-inch gypsum wallboard on the interior face. A honeycomb panel with Jerusalem limestone stone veneer is mounted to the partition using fastening clips attached to the back of the panel as required. A mitered stone corner finishes the top of the stone base assembly, leaving space for a future finish by others above.
METAL STUD PARTITION, AS SCHEDULED HONEYCOMB PANEL WITH STONE VENEER, JERUSALEM LIMESTONE FASTENING CLIPS ATTACHED TO BACK OF HONEYCOMB PANEL AS REQUIRED 5/8" GWB FUTURE FINISH, BY OTHERS MITERED STONE CORNER
