Ceramic tile is set per Tile Council of North America guidelines with a maximum 2 percent slope to drain. Carpet is installed per the finish schedule on the opposite side of the threshold. An aluminum transition strip joins the two flooring materials, featuring a 1 to 2 slope for a maximum half-inch rise. A door as scheduled is centered above the flooring transition.

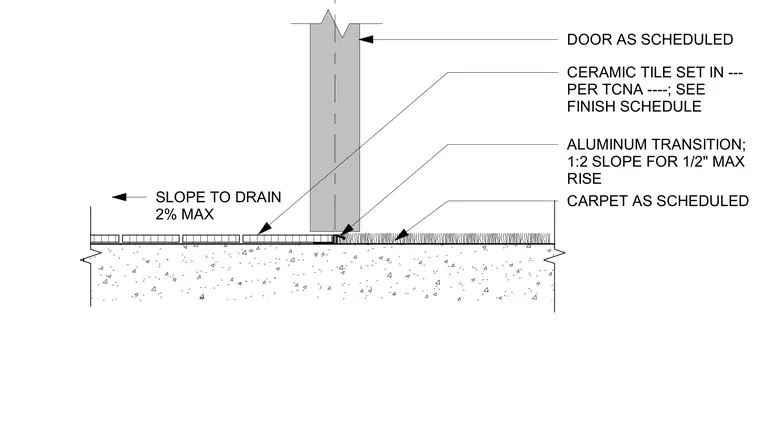

CARPET AS SCHEDULED CERAMIC TILE SET IN --- PER TCNA ----; SEE FINISH SCHEDULE DOOR AS SCHEDULED SLOPE TO DRAIN 2% MAX ALUMINUM TRANSITION; 1:2 SLOPE FOR 1/2" MAX RISE
