Slab Cantilever and Metal Deck Transition Details

Materials

Steel Metal (misc.)Composite

Elements

Beams Roofs Floors / Slabs Decks Bracing Connections / Plates Reinforcing

Connections

Bracing Connection Shear Stud / Composite

About this detail

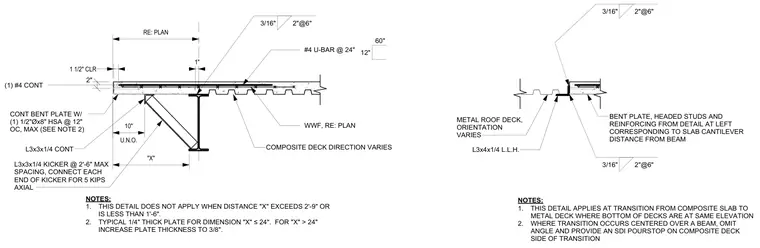

A concrete slab cantilevers past a supporting steel beam with a continuous bent plate anchored by half-inch diameter by eight-inch heavy-duty sleeve anchors at twelve inches on center. A continuous L3x3x1/4 angle kicker spaced at a maximum of two feet six inches ties back to the beam web, designed for five kips axial load. Continuous number four U-bars at twenty-four inches on center and welded wire reinforcement reinforce the composite deck assembly. A second detail shows the transition from the composite slab to a metal roof deck centered over a beam, omitting the angle and utilizing an SDI pour-stop.
