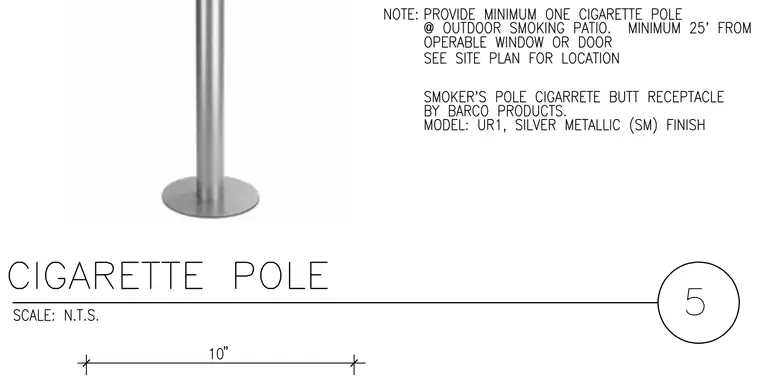

A smoker's pole cigarette butt receptacle is provided at the outdoor smoking patio, located a minimum of twenty-five feet from any operable window or door as indicated on the site plan. The fixture is specified as a cigarette pole by Barco Products, model UR1, featuring a silver metallic finish.
