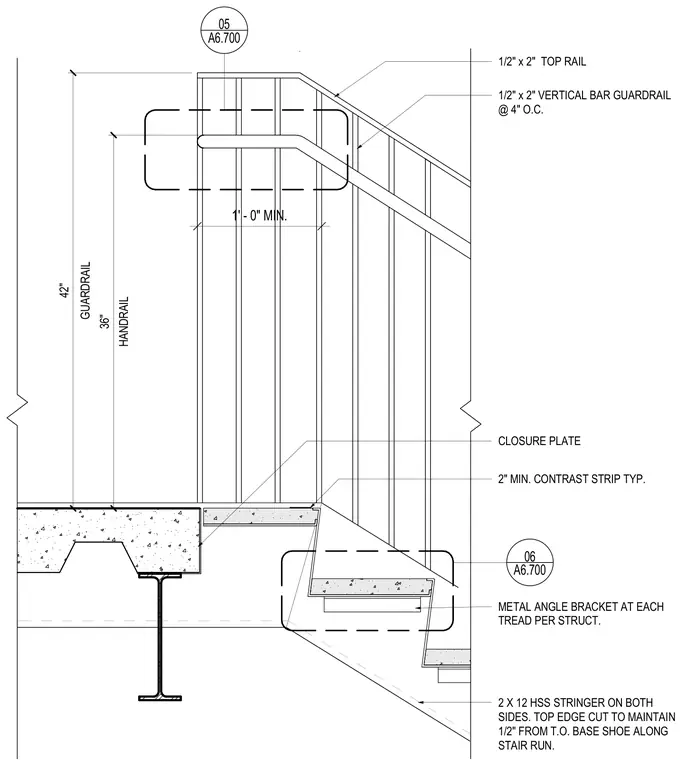

Top landing section of an interior steel stair assembly. Two-by-twelve hollow structural section stringers run along both sides, with the top edge cut to maintain a one-half-inch clearance from the top of the base shoe along the stair run. A metal angle bracket supports each tread per structural requirements, alongside a closure plate at the landing edge. The guardrail stands at forty-two inches high with a handrail at thirty-six inches, utilizing one-half-inch by two-inch vertical bars at four inches on center and a one-half-inch by two-inch top rail. A two-inch minimum contrast strip is provided at the tread edge.
05 A6.700 2" MIN. CONTRAST STRIP TYP. 2 X 12 HSS STRINGER ON BOTH SIDES. TOP EDGE CUT TO MAINTAIN 1/2" FROM T.O. BASE SHOE ALONG STAIR RUN. 1/2" x 2" VERTICAL BAR GUARDRAIL @ 4" O.C. 1/2" x 2" TOP RAIL 1' - 0" MIN. CLOSURE PLATE METAL ANGLE BRACKET AT EACH TREAD PER STRUCT. HANDRAIL 36" GUARDRAIL 42" 06 A6.700
