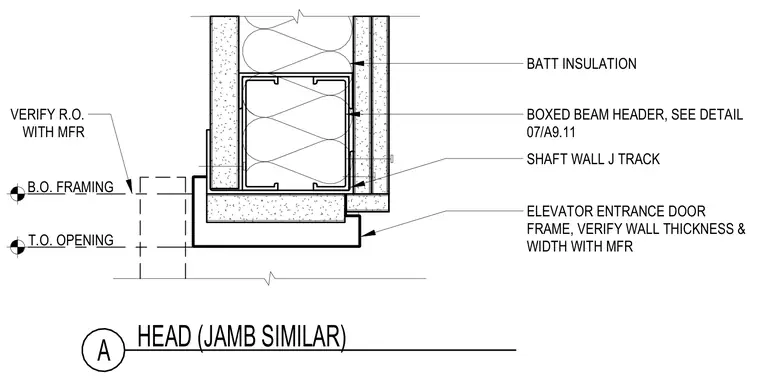

An elevator entrance door frame aligns beneath a shaft wall J track and a boxed beam header, with rough opening dimensions verified against the manufacturer. Batt insulation fills the surrounding cavity behind the gypsum board wall layers. Bottom of framing and top of opening elevations establish vertical positioning for the entrance assembly.
BATT INSULATION BOXED BEAM HEADER, SEE DETAIL 07/A9.11 SHAFT WALL J TRACK ELEVATOR ENTRANCE DOOR FRAME, VERIFY WALL THICKNESS & WIDTH WITH MFR VERIFY R.O. WITH MFR B.O. FRAMING T.O. OPENING HEAD (JAMB SIMILAR) A
