A butterfly latch assembly mounts to a tubular gate post frame using a quarter-inch metal plate welded to both sides and ground smooth. A lever measuring 2-1/2 inches by 1-1/2 inches by 1/4 inch diameter is welded directly to the latch. The assembly is integrated with a chain link fence frame having maximum clearances of 10 inches and 3 inches.

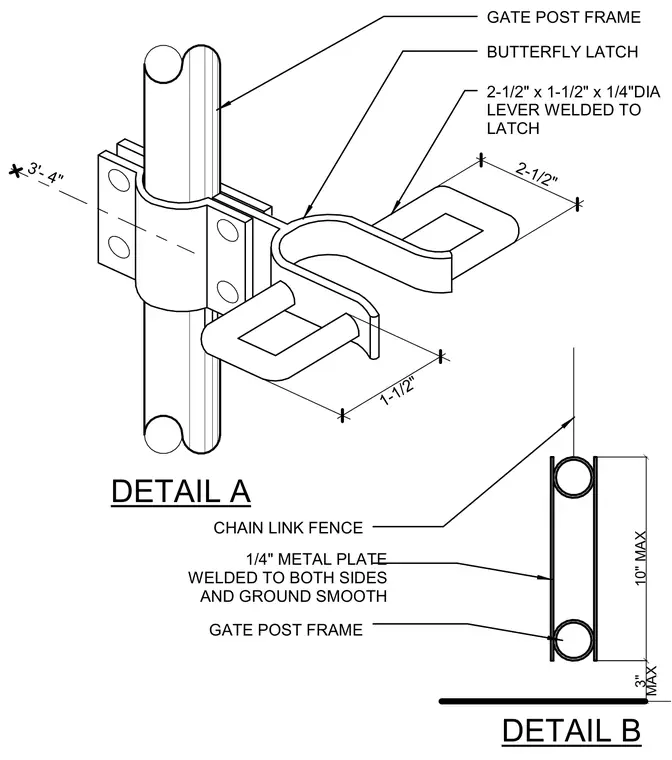

GATE POST FRAME 1/4" METAL PLATE WELDED TO BOTH SIDES AND GROUND SMOOTH 1-1/2" 2-1/2" DETAIL A DETAIL B 3'- 4" BUTTERFLY LATCH 2-1/2" x 1-1/2" x 1/4"DIA LEVER WELDED TO LATCH GATE POST FRAME CHAIN LINK FENCE 3" MAX 10" MAX
