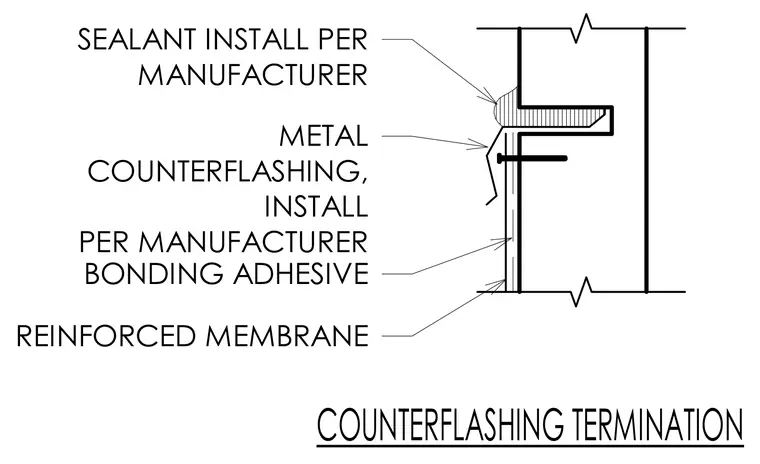

Metal counterflashing is secured over a reinforced membrane adhered with bonding adhesive per manufacturer specifications. A bead of sealant is applied along the top joint of the counterflashing per manufacturer instructions.
SEALANT INSTALL PER MANUFACTURER METAL COUNTERFLASHING, INSTALL PER MANUFACTURER BONDING ADHESIVE REINFORCED MEMBRANE COUNTERFLASHING TERMINATION
