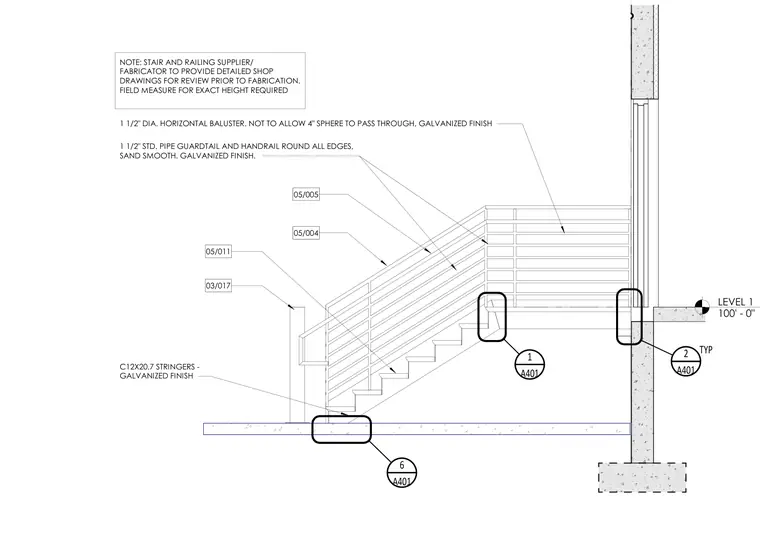

An enlarged stair section features C12x20.7 structural steel channel stringers with a galvanized finish bearing onto concrete foundation elements. The guardrail and handrail assembly consists of 1 1/2 inch standard pipe with rounded and sanded edges, complete with a galvanized finish. Horizontal balusters of 1 1/2 inch diameter are spaced to prevent a 4-inch sphere from passing through. The fabricator is required to provide detailed shop drawings for review prior to fabrication and field measure for exact heights.
LEVEL 1 100' - 0" 03/017 05/004 05/005 05/011 1 1/2" DIA. HORIZONTAL BALUSTER. NOT TO ALLOW 4" SPHERE TO PASS THROUGH, GALVANIZED FINISH 1 1/2" STD. PIPE GUARDTAIL AND HANDRAIL ROUND ALL EDGES, SAND SMOOTH. GALVANIZED FINISH. C12X20.7 STRINGERS - GALVANIZED FINISH NOTE: STAIR AND RAILING SUPPLIER/ FABRICATOR TO PROVIDE DETAILED SHOP DRAWINGS FOR REVIEW PRIOR TO FABRICATION. FIELD MEASURE FOR EXACT HEIGHT REQUIRED A401 6 A401 2 TYP A401 1
