An upper or lower tubular side rail connects to a quarter-inch thick steel bolting flange with a typical one-eighth-inch fillet weld. Four one-quarter-inch diameter zinc-plated steel bolts with nylon insert locknuts and washers secure the assembly through pre-drilled holes in the flange. The plate features typical one-quarter-inch corner radii and is dimensioned symmetrically about centerline axes.

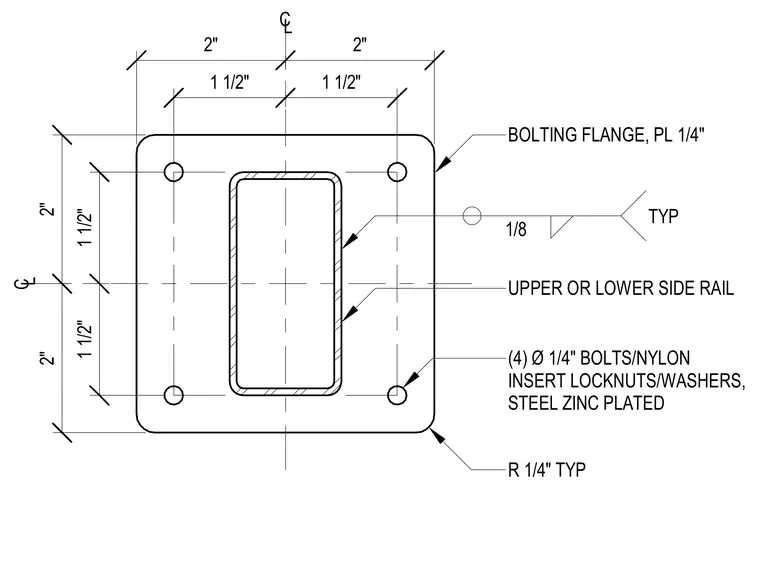

1/8 TYP BOLTING FLANGE, PL 1/4" UPPER OR LOWER SIDE RAIL (4) Ø 1/4" BOLTS/NYLON INSERT LOCKNUTS/WASHERS, STEEL ZINC PLATED 1 1/2" 1 1/2" 2" 2" 2" 2" 1 1/2" 1 1/2" R 1/4" TYP C L C L
