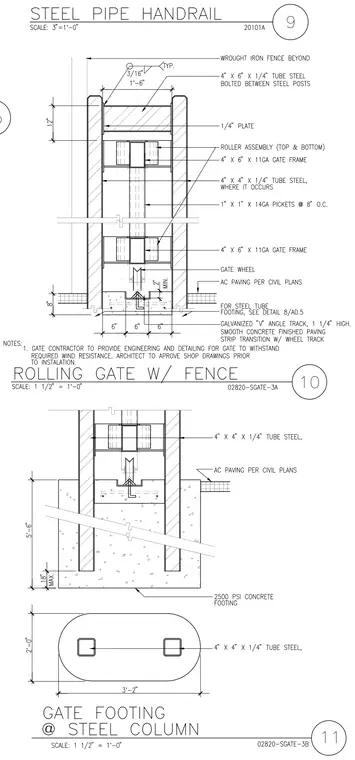

A rolling gate frame constructed from 4 inch by 6 inch by 11 gauge tube steel and 4 inch by 4 inch by 1/4 inch tube steel operates on top and bottom roller assemblies with a gate wheel. The gate travels along a galvanized 1 1/4 inch high V-angle track set over smooth concrete finished paving and a strip transition. The support posts consist of 4 inch by 6 inch by 1/4 inch tube steel anchored into a 2500 PSI concrete footing. Asphaltic concrete paving abuts the footing per civil plans.
