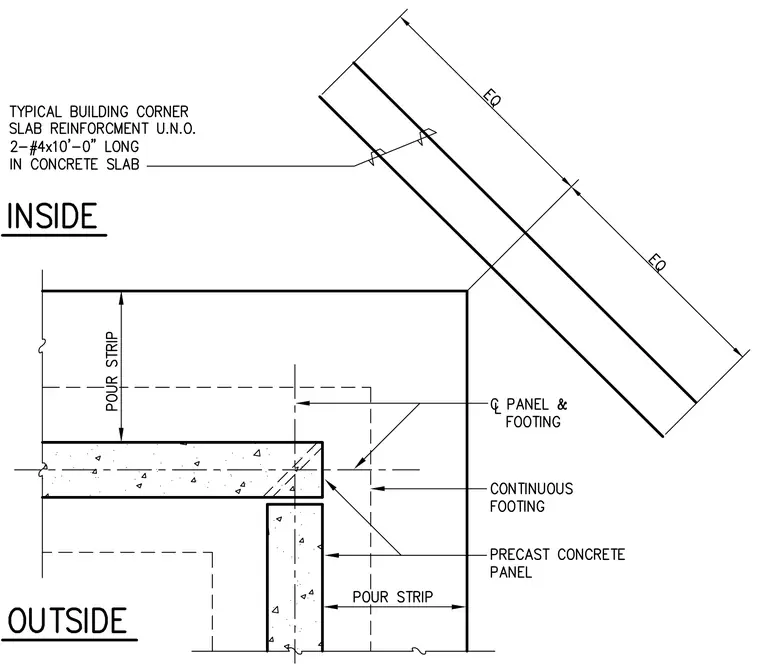

Precast concrete panels bear along a continuous footing and pour strip at a building corner. The concrete slab is reinforced with two number 4 rebars each ten feet long unless noted otherwise. Dimensions indicate equal spacing along the exterior panel layout. Centerlines align the precast panel and continuous footing.
