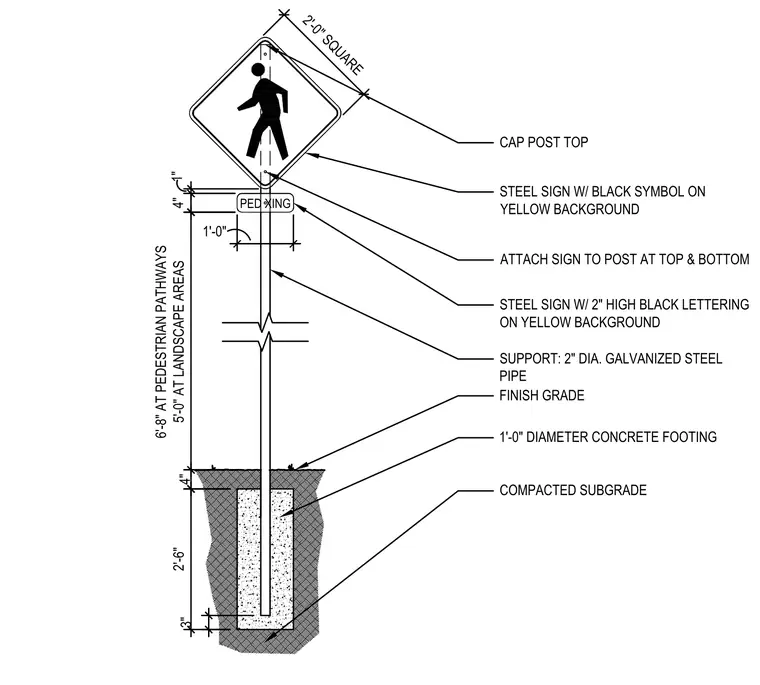

The assembly consists of a two-foot square steel sign with a black symbol on a yellow background and a smaller supplemental plate with two-inch high black lettering reading PED XING, both attached to the post at the top and bottom. The vertical support is a two-inch diameter galvanized steel pipe with a capped top extending into the ground. At pedestrian pathways, the clearance to the bottom of the sign is six feet eight inches, and at landscape areas it is five feet zero inches. The pipe post is embedded into a one-foot diameter concrete footing that is two feet six inches deep with a four-inch projection above finish grade and a three-inch clearance to compacted subgrade.
2'-6" 1'-0" DIAMETER CONCRETE FOOTING 4" 3" 6'-8" AT PEDESTRIAN PATHWAYS 5'-0" AT LANDSCAPE AREAS STEEL SIGN W/ BLACK SYMBOL ON YELLOW BACKGROUND ATTACH SIGN TO POST AT TOP & BOTTOM SUPPORT: 2" DIA. GALVANIZED STEEL PIPE FINISH GRADE COMPACTED SUBGRADE CAP POST TOP 4" 2'-0" SQUARE 1" STEEL SIGN W/ 2" HIGH BLACK LETTERING ON YELLOW BACKGROUND 1'-0" PED XING
