Partition-Mounted Items

Materials

Elements

Walls Partitions Floors / Slabs Millwork / Casework

About this detail

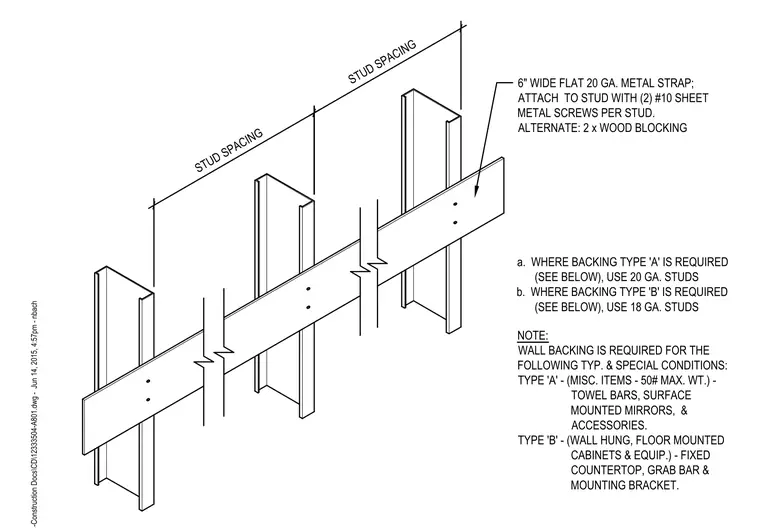

A six-inch wide flat twenty gauge metal strap spans horizontally across multiple metal studs at designated stud spacing intervals. The strap attaches to each stud using two number ten sheet metal screws per stud, with a two-inch wood blocking alternative available. Type A backing utilizes twenty gauge studs for miscellaneous items up to fifty pounds like towel bars and surface mounted mirrors, while Type B backing utilizes eighteen gauge studs for wall hung cabinets, fixed countertops, and grab bars.
